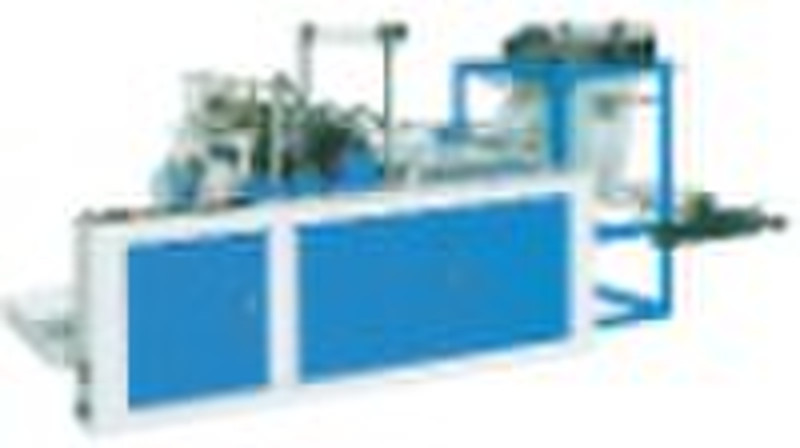

DFR-500 700 800 1000 Computer Automatic Heat-seali

DFR-500/700 Computer Automatic Heat-sealing and Heat-cutting Bag-making MachineApplication 1.The machine adopts Electromechanical Integration, automatic tracking, length setting, counting2.Adopts frequency conversion to adjust speed stepless.3.Makes bags with high speed, operation easily.4.Suitable for making colorful vest bags and environmentalProtect bags.Main technical variables Model DFR-500 DFR-700 DFR-800 DFR-1000 Max. width 500 mm 700 mm 800mm 1000mm length 100-1000 mm 100-1000 mm 100-1000 mm 100-1000 mm thickness 0.005-0.50 mm 0.005-0.50 mm 0.005-0.50 mm 0.005-0.50 mm Error in length ±1 mm ±1 mm ±1 mm ±1 mm Speed 30-120pcs/min 30-120pcs/min 30-120pcs/min 30-120pcs/min Power of main motor 0.75kw 1.1kw 1.3kw 1.6kw Heating power 2kw 2.4kw 2.6kw 3.0kw Total power 3kw 3.8kw 4.2kw 5kw Weight of machine 800 kg 900 kg 950kg 1050kg Overall dimensions 2.6x1.1x1.5m 2.6x1.3x1.5m 2.6x1.4x1.5m 2.6x1.6x1.5m
