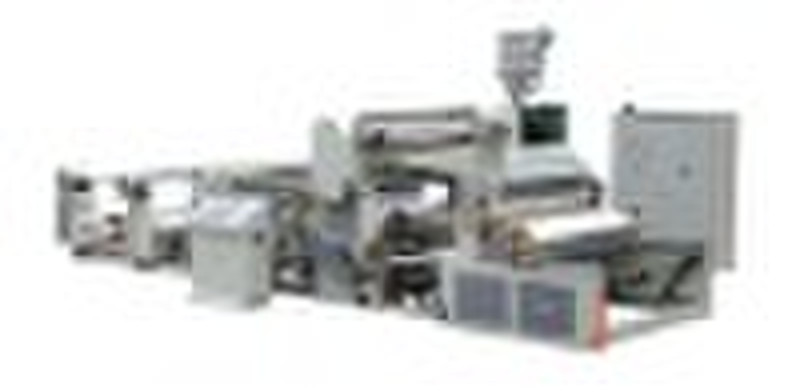

SJ100-2200 SJ90-1650 SJ85-1350 SJ70-1000 Full Auto

Feature: This series of products are made by compounding fluid paper, plastic film, woven cloth or aluminum foil into double layer, three layer or multi-layer new materials, which are used for packaging products of cement, chemicals, forage, food, medicine, adhesive tape cloth, plastic coating paper cups and fast food boxes, etc.The machine is made up of plastic extruder, dies, moving holder, automatic paper accepter, roll unwinding machine, preheating device for reinforced control device, second roll unwinding machine, compounding machine, pneumatic edge cutter or independent electric edge cutter, igniter. automatic feeder, cooling device for freezing machine, double photoelectric deviation-correcting device, plastic coating device and supported with friction roll rewinding, double- station revolving roll rewinding, roll pre-rewinding device and single or double sided compounding machine for choice. It can run for continuously for 24 hours, and change rolls without stop, and it can reach compounding speed of 20-150m/min, with low loss and high benefit.Main Technical ParametersModelSJ-70-1000SJ-85-1350SJ-90-1650SJ-100-2200Width of finished product450-800mm600-1200mm1100-1500mm1500-2000mmMax compounding speed50-110m/min50-110m/min50-110m/min50-110m/minWidth of shower film0.01-0.03mm0.01-0.03mm0.01-0.03mm0.01-0.03mmL/D ratio for screw28:128:128:128:1Max diameter of roll1200mm1200mm1200mm1200mmOverall size(mm)12000×6000×320012500×7000×320013000×8000×320012000×9000×3200Power65kw75kw95kw140kwBase materialPaper, aluminum foil ,BOPP BOPET BOPA CPP CPE ,etc.
