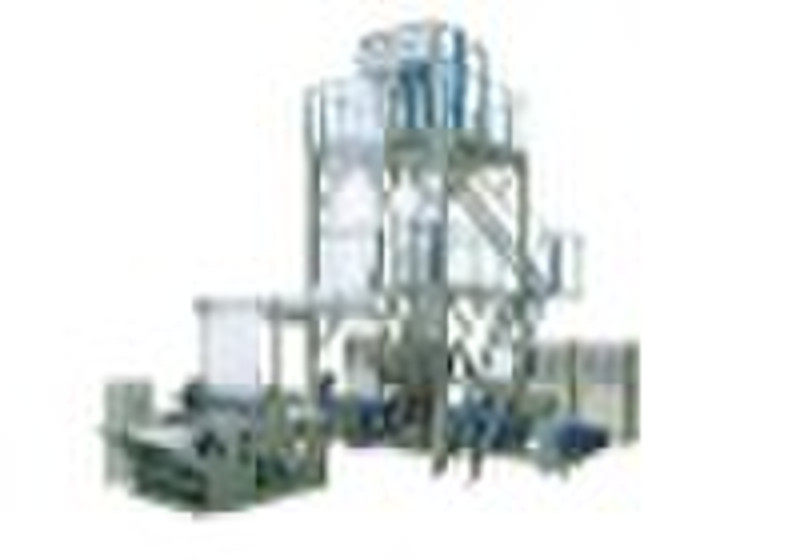

SJ45x3/FM1000 Tree layers Rotary Die Head PE Film

Characteristics: 1.Die head is lauer type spiral mandrel, continuous 360, rotation. 2.Screen pack changer Design is rational convenience,reliable, safe in operation. 3.Various functuonal parts may be installed to the lies, such as length counting device,verdtical cutting device, cooling water row pipe, film spreading roller, scrap collecting device.Use The lines are designed developed by our corporation according to market need,they reach the advanced levels in the 90s,come up with analogous lines in Home. It is optimum Designed on the trounds of preference of analogous lines in foreign and Home. The lines can be blown continuous 1200/1300/1500mm in fold width 0.08mm in the thickness packaging films, from LDPE, HDPE, LLDPE, MLLPE, Paby horzontal extrusion up blown. The film has good in sulation, for instance holding temperature, antihu-mid, antibreeze, anti-rain, anti-rorst, insulation oxygen, oil resistive, and so used for light and heavy-duty packaging, for example fresh fruits, meat-feeding,salt vegetables, fresh milk, drink. Main Technical VariablesModel SJ45x3/FM1000SJ50x3/FM1200SJ55x3/FM1500SJ60x3/FM2000SJ65x3/FM2500SJ75x3/FM3000Screw Diameter φ45mmφ55mmφ55mmφ55mmφ55mmφ75mmScrew Ratio ( L/D ) 30:130:130:130:130:130:1Screw Speed 15-150r/min15-150r/min15-150r/min15-150r/min15-150r/min15-150r/minPower of Main Motor 11Kwx315Kwx318.5Kwx315Kwx318.5Kwx318.5Kwx3Range of Die ¢200 ¢250mm¢200 ¢250mm¢250 ¢300mm¢500mm¢600mm¢700mmMax Extrusion Output 100kg/h120kg/h150kg/h180kg/h200kg/h230kg/hsingle-sided Thickness of Film 0.01-0.10mm0.01-0.10mm0.01-0.10mm0.01-0.10mm0.01-0.10mm0.01-0.10mmMax.Folding Width of Film 1000mm1200mm1500mm200mm2500mm3000mmElectric Total Capacity 76Kw88Kw102Kw130Kw156Kw186KwWeight of Mashine 4200kg5300kg6200kg8600kg10600kg13000kgOverall Dimensions(mm) 6600x4100x50006800x4300x60007000x4800x68006800x4300x60007000x4800x68007000x4800x6800
